Welcome to the Tech Stack Page
The technologies presented here are being used for the deployment of this website,
demonstrated either by a code snippet, a screenshot, or a simple explanation.
Click any of the dropdown menus above to see what technologies are included
and what part they take in this website's deployment, environment, infrastructure, and more.
Jenkinsfile
The most commonly used, powerful, declarative CI tool, an open-source automation server with a massive plugin ecosystem, perfect for building, deploying, and automating any CI/CD pipeline. I am using the following stages to make sure that I build a resilient and secure image, that will be versioned and pushed to my Artifact storage.
environment {
AWS_REGION = "us-east-1"
ECR_REGISTRY = "${AWS_ACCOUNT_ID}.dkr.ecr.us-east-1.amazonaws.com"
ECR_REPOSITORY = "mywebsite"
IMAGE_FILE_NAME = "my-app-image.tar"
BRANCH_NAME = "${env.GIT_BRANCH?.replaceAll(/[^a-zA-Z0-9]/, '-')}"
IMAGE_TAG = "1.${env.BUILD_NUMBER}-${BRANCH_NAME}"
}
stage('Checkout') {
steps {
checkout scm
}
}
stage('Build Image') {
steps {
script {
sh """
echo "Building Docker image..."
docker build -t ${ECR_REGISTRY}/${ECR_REPOSITORY}:${IMAGE_TAG} .
docker save ${ECR_REGISTRY}/${ECR_REPOSITORY}:${IMAGE_TAG} -o ${IMAGE_FILE_NAME}
"""
archiveArtifacts artifacts: "${IMAGE_FILE_NAME}", fingerprint: true
}
}
}
stage('Integration Test - Database') {
when {
expression {
return env.BRANCH_NAME == "database" || (env.GIT_COMMIT && sh(script: "git log -1 --pretty=%B | grep -E 'db|database' || true", returnStatus: true) == 0)
}
}
steps {
script {
// Use Jenkins credentials for the database
// This injects DB_USER and DB_PASS as environment variables
withCredentials([
[$class: 'UsernamePasswordMultiBinding',
credentialsId: 'my-db-creds',
dbnameVariable: 'DB_NAME',
usernameVariable: 'DB_USER',
passwordVariable: 'DB_PASS']
]) {
sh """
echo "Running Database Integration Tests..."
curl -L "https://github.com/docker/compose/releases/download/v2.21.0/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
chmod +x /usr/local/bin/docker-compose
docker load -i ${IMAGE_FILE_NAME}
docker-compose -f docker-compose.ci.yaml -p ci up -d
echo "Waiting for services..."
sleep 15
docker run --rm --network=ci_default \
-v $(pwd)/test_db.py:/test_db.py \
-e POSTGRES_HOST=db \
-e POSTGRES_DB=${DB_NAME} \
-e POSTGRES_USER=${DB_USER} \
-e POSTGRES_PASSWORD=${DB_PASS} \
--entrypoint="" python:3.9-slim \
sh -c "pip install psycopg2-binary requests && python -u /test_db.py"
"""
}
}
}
post {
always {
sh "docker-compose -f docker-compose.ci.yaml -p ci down || true"
}
}
}
stage('Integration Test - App Only') {
when {
expression {
return !(env.BRANCH_NAME == "database" || (env.GIT_COMMIT && sh(script: "git log -1 --pretty=%B | grep -E 'db|database' || true", returnStatus: true) == 0))
}
}
steps {
script {
sh """
echo "Running application-only tests..."
echo "Application test placeholder successful!"
"""
}
}
}
stage('Security Scan') {
steps {
script {
sh """
echo "Running Gitleaks scan..."
docker run --rm -v $(pwd):/repo zricethezav/gitleaks:latest detect --source=/repo --no-git -v || true
echo "Running Trivy scan..."
docker run --rm -v $(pwd):/work -v /var/run/docker.sock:/var/run/docker.sock \
aquasec/trivy image --exit-code 1 --severity HIGH,CRITICAL \
${ECR_REGISTRY}/${ECR_REPOSITORY}:${IMAGE_TAG} || true
"""
}
}
}
stage('Push to ECR') {
when {
expression { return !sh(script: "git log -1 --pretty=%B | grep 'skip' || true", returnStatus: true) == 0 }
}
steps {
script {
withCredentials([
[$class: 'AmazonWebServicesCredentialsBinding', credentialsId: 'aws-jenkins-creds']
]) {
sh """
echo "Logging into Amazon ECR..."
aws ecr get-login-password --region ${AWS_REGION} | docker login --username AWS --password-stdin ${ECR_REGISTRY}
docker load -i ${IMAGE_FILE_NAME}
docker push ${ECR_REGISTRY}/${ECR_REPOSITORY}:${IMAGE_TAG}
"""
}
}
}
}
stage('Update Kubernetes Manifest Repo') {
steps {
script {
sshagent(['github-pat']) {
sh """
echo "Cloning Kubernetes manifest repo..."
git clone --branch ${BRANCH_NAME} https://github.com/liormilliger/mywebsite-k8s.git
cd mywebsite-k8s
wget https://github.com/mikefarah/yq/releases/latest/download/yq_linux_amd64 -O /usr/bin/yq
chmod +x /usr/bin/yq
yq eval '.image.tag = "${IMAGE_TAG}"' -i my-app-chart/values.yaml
git config user.name "Jenkins"
git config user.email "jenkins@local"
git commit -am "Update image tag for mywebsite to ${IMAGE_TAG}" || echo "No changes"
git push
"""
}
}
}
}
post {
always {
echo "Pipeline completed for branch: ${BRANCH_NAME}"
}
}

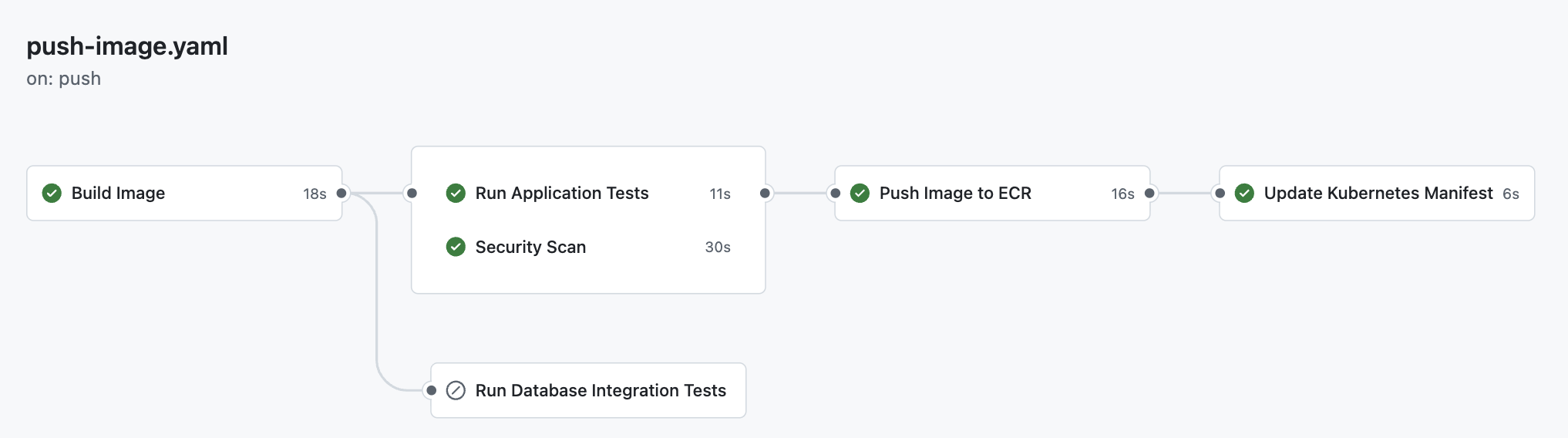

GitHubA Actions CI
A modern, fully-managed CI/CD platform integrated directly into GitHub. This workflow automates building a Docker image, running tests, pushing it to Amazon ECR, and then updating a Kubernetes manifest repository with the new image tag. The process is triggered by a push to the main branch.
name: Build, Test, Scan, and Push Docker Image
on:
push:
branches: [ "main", "database" ]
workflow_dispatch:
env:
AWS_REGION: us-east-1
# BEST PRACTICE: Switched from 'vars' to 'secrets' to protect your AWS Account ID
ECR_REGISTRY: ${{ secrets.AWS_ACCOUNT_ID }}.dkr.ecr.us-east-1.amazonaws.com
ECR_REPOSITORY: mywebsite
IMAGE_FILE_NAME: my-app-image.tar
jobs:
build:
name: Build Image
runs-on: ubuntu-latest
outputs:
image_tag: ${{ steps.version.outputs.IMAGE_TAG }}
steps:
- name: Checkout repository
uses: actions/checkout@v4
- name: Define Image Version Tag
id: version
run: |
BRANCH_NAME=$(echo ${{ github.ref_name }} | sed 's/[^a-zA-Z0-9]/-/g')
VERSION="1.${{ github.run_number }}-${BRANCH_NAME}"
echo "IMAGE_TAG=${VERSION}" >> $GITHUB_OUTPUT
- name: Build Docker image
run: docker build -t ${{ env.ECR_REGISTRY }}/${{ env.ECR_REPOSITORY }}:${{ steps.version.outputs.IMAGE_TAG }} .
- name: Save Docker image as an artifact
run: docker save ${{ env.ECR_REGISTRY }}/${{ env.ECR_REPOSITORY }}:${{ steps.version.outputs.IMAGE_TAG }} --output ${{ env.IMAGE_FILE_NAME }}
- name: Upload image artifact
uses: actions/upload-artifact@v4
with:
name: docker-image
path: ${{ env.IMAGE_FILE_NAME }}
integration-test-db:
name: Run Database Integration Tests
runs-on: ubuntu-latest
needs: build
if: github.ref_name == 'database' || contains(toJSON(github.event.commits.*.message), 'db') || contains(toJSON(github.event.commits.*.message), 'database')
steps:
- name: Checkout repository
uses: actions/checkout@v4
- name: Install Docker Compose (Optimized)
run: |
sudo curl -L "https://github.com/docker/compose/releases/download/v2.21.0/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose
- name: Download image artifact
uses: actions/download-artifact@v4
with:
name: docker-image
- name: Load Docker image
run: docker load --input ${{ env.IMAGE_FILE_NAME }}
- name: Start services using Docker Compose
env:
WEB_IMAGE: ${{ env.ECR_REGISTRY }}/${{ env.ECR_REPOSITORY }}:${{ needs.build.outputs.image_tag }}
run: docker-compose -f docker-compose.ci.yaml -p ci up -d
- name: Wait for services to be healthy
run: |
echo "Waiting for containers to become healthy..."
sleep 15
- name: Execute Database Test Script
run: |
docker run --rm --network=ci_default \
-v $(pwd)/test_db.py:/test_db.py \
-e POSTGRES_HOST=${{ secrets.TEST_DB_HOST }} \
-e POSTGRES_DB=${{ secrets.TEST_DB_NAME }} \
-e POSTGRES_USER=${{ secrets.TEST_DB_USER }} \
-e POSTGRES_PASSWORD=${{ secrets.TEST_DB_PASSWORD }} \
--entrypoint="" \
python:3.9-slim \
sh -c "pip install psycopg2-binary requests && python -u /test_db.py"
- name: Stop services
if: always()
run: docker-compose -f docker-compose.ci.yaml -p ci down
integration-test-app:
name: Run Application Tests
runs-on: ubuntu-latest
needs: build
if: "!(github.ref_name == 'database' || contains(toJSON(github.event.commits.*.message), 'db') || contains(toJSON(github.event.commits.*.message), 'database'))"
steps:
- name: Checkout repository
uses: actions/checkout@v4
- name: Download image artifact
uses: actions/download-artifact@v4
with:
name: docker-image
- name: Load Docker image
run: docker load --input ${{ env.IMAGE_FILE_NAME }}
- name: Execute Application Test Script
run: |
echo "Running application-only tests..."
echo "Application test placeholder successful!"
security-scan:
name: Security Scan
runs-on: ubuntu-latest
needs: build
permissions:
contents: read
security-events: write
steps:
- name: Checkout repository
uses: actions/checkout@v4
with:
fetch-depth: 0
- name: Scan repository for secrets with Gitleaks
uses: gitleaks/gitleaks-action@v2
env:
GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}
- name: Download image artifact
uses: actions/download-artifact@v4
with:
name: docker-image
- name: Scan Docker image for vulnerabilities with Trivy
uses: aquasecurity/trivy-action@v0.50.1
with:
input: '${{ env.IMAGE_FILE_NAME }}'
format: 'sarif'
output: 'trivy-results.sarif'
severity: 'CRITICAL,HIGH'
- name: Upload Trivy scan results to GitHub Security tab
uses: github/codeql-action/upload-sarif@v3
with:
sarif_file: 'trivy-results.sarif'
push-to-ecr:
name: Push Image to ECR
runs-on: ubuntu-latest
needs: [build, integration-test-app, security-scan]
permissions:
id-token: write
contents: read
if: success() && !contains(toJSON(github.event.commits.*.message), 'skip')
steps:
- name: Configure AWS credentials
uses: aws-actions/configure-aws-credentials@v4
with:
role-to-assume: arn:aws:iam::${{ secrets.AWS_ACCOUNT_ID }}:role/GitHubActionsRole
aws-region: ${{ env.AWS_REGION }}
- name: Login to Amazon ECR
uses: aws-actions/amazon-ecr-login@v2
- name: Download image artifact
uses: actions/download-artifact@v4
with:
name: docker-image
- name: Load Docker image
run: docker load --input ${{ env.IMAGE_FILE_NAME }}
- name: Push image to Amazon ECR
run: |
IMAGE_TAG="${{ needs.build.outputs.image_tag }}"
docker push ${{ env.ECR_REGISTRY }}/${{ env.ECR_REPOSITORY }}:${IMAGE_TAG}
update-kubernetes-repo:
name: Update Kubernetes Manifest
runs-on: ubuntu-latest
needs: [build, push-to-ecr]
steps:
- name: Checkout Kubernetes repo
uses: actions/checkout@v4
with:
repository: liormilliger/mywebsite-k8s
ssh-key: ${{ secrets.DEPLOY_KEY }}
ref: ${{ github.ref_name }}
- name: Install yq
run: sudo wget https://github.com/mikefarah/yq/releases/latest/download/yq_linux_amd64 -O /usr/bin/yq && sudo chmod +x /usr/bin/yq
- name: Update image tag in values.yaml
run: |
IMAGE_TAG="${{ needs.build.outputs.image_tag }}"
yq eval '.image.tag = "'"$IMAGE_TAG"'"' -i 'my-app-chart/values.yaml'
- name: Commit and push changes
run: |
git config --global user.name "GitHub Actions"
git config --global user.email "github-actions@github.com"
git commit -am "Update image tag for mywebsite to ${{ needs.build.outputs.image_tag }}"
git push
ArgoCD
ArgoCD, as part of GitOps, serves as a CD tool that manages the deployment state.
It listens to a git repository and react to changes within it and auto deploys.
I created app-of-apps application file that deploys few applications - I used my website application helm chart,
alongside with additional applications to support my app environment - Security, Load Balancing and Observability.
ArgoCD can visualize the deployment components im different view ,and enables multiple options for sync,
self/auto-healing and cluster-state check to validate the existing state is aligned with the desired state.
I chose to present this view to show the website application on all its components as ArgoCD shows it.
Containerization Strategy
The Dockerfile encapsulates the entire Python application, creating a self-contained image with a defined entry point. For deployment, docker-compose.yaml orchestrates the launch of the app as a set of interconnected microservices, including the database, a reverse proxy, and certificate services (CA) to expose the application securely. The streamlined docker-compose.ci.yaml is specifically for CI build and testing environments, where services like the proxy and certificate management are unnecessary.
FROM python:3.9-slim
WORKDIR /app
COPY ./app/requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt
COPY ./app /app
EXPOSE 5000
CMD ["gunicorn", "--bind", "0.0.0.0:5000", "app:app"]
version: '3.8'
services:
app:
build: .
container_name: mywebsite-app
restart: unless-stopped
expose:
- "5000"
volumes:
- ./app:/app
depends_on:
db:
condition: service_healthy
environment:
- DATABASE_URL=postgresql://${POSTGRES_USER}:${POSTGRES_PASSWORD}@db:5432/${POSTGRES_DB}
nginx:
image: nginx:latest
container_name: mywebsite-nginx
restart: always
ports:
- "80:80"
- "443:443"
volumes:
- ./nginx/nginx.conf:/etc/nginx/conf.d/default.conf
- ./data/certbot/conf:/etc/letsencrypt
- ./data/certbot/www:/var/www/certbot
depends_on:
- app
certbot:
image: certbot/certbot
container_name: mywebsite-certbot
volumes:
- ./data/certbot/conf:/etc/letsencrypt
- ./data/certbot/www:/var/www/certbot
command: sh -c "trap exit TERM; while :; do certbot renew; sleep 12h & wait $${!}; done;"
db:
image: postgres:15-alpine
container_name: mywebsite-db
restart: always
environment:
- POSTGRES_USER=${POSTGRES_USER}
- POSTGRES_PASSWORD=${POSTGRES_PASSWORD}
- POSTGRES_DB=${POSTGRES_DB}
ports:
- "5432:5432"
volumes:
- postgres_data:/var/lib/postgresql/data
- ./init:/docker-entrypoint-initdb.d
healthcheck:
test: ["CMD-SHELL", "pg_isready -U ${POSTGRES_USER} -d ${POSTGRES_DB}"]
interval: 10s
timeout: 5s
retries: 5
volumes:
postgres_data:
version: '3.8'
services:
db:
image: postgres:15
container_name: test-db
environment:
POSTGRES_DB: mywebsite
POSTGRES_USER: admin
POSTGRES_PASSWORD: password
volumes:
- ./init:/docker-entrypoint-initdb.d
healthcheck:
test: ["CMD-SHELL", "pg_isready -U admin -d mywebsite"]
interval: 5s
timeout: 5s
retries: 5
web:
image: ${WEB_IMAGE}
container_name: test-web
environment:
POSTGRES_HOST: db
POSTGRES_DB: mywebsite
POSTGRES_USER: admin
POSTGRES_PASSWORD: password
depends_on:
db:
condition: service_healthy
Kubernetes Manifests & GitOps Strategy
For a complete overview of the Kubernetes files and the repository structure,
please visit my Git repository:
https://github.com/liormilliger/mywebsite-k8s.git.
After containerizing my application, I create the necessary Kubernetes manifests.
This includes Deployment and Service files for each component, ensuring the correct labels and selectors are applied for proper service discovery and management.
Additionally, I create an Ingress manifest to manage external access, mapping the routing to my website's domain and securing it with TLS encryption.
This repository is managed via a GitOps workflow. I use Argo CD, which monitors the repo for changes. To facilitate this, I have also included Argo CD's Application manifests, enabling the "app-of-apps" pattern for automated, declarative deployment of any newly pushed images or configuration changes.
Helm ☸️ - Packing k8s Manifests
Helm streamlines Kubernetes application management by packaging all necessary manifest files into a single unit called a Chart. It uses a powerful templating engine to make these charts reusable across different environments, managing complex deployments with a simple, centralized configuration file.
apiVersion: apps/v1
kind: Deployment
metadata:
name: mywebsite-deployment
spec:
replicas: {{ .Values.app.replicaCount }}
selector:
matchLabels:
app: mywebsite
template:
metadata:
labels:
app: mywebsite
spec:
containers:
- name: mywebsite-app
image: "{{ .Values.app.image.repository }}:{{ .Values.app.image.tag }}"
imagePullPolicy: {{ .Values.app.image.pullPolicy }}
ports:
- containerPort: {{ .Values.app.containerPort }}
env:
- name: POSTGRES_HOST
value: {{ .Values.database.host | quote }}
- name: POSTGRES_DB
valueFrom:
configMapKeyRef:
name: {{ .Values.objectNames.configMap }}
key: POSTGRES_DB
- name: POSTGRES_USER
valueFrom:
configMapKeyRef:
name: {{ .Values.objectNames.configMap }}
key: POSTGRES_USER
- name: POSTGRES_PASSWORD
valueFrom:
secretKeyRef:
name: {{ .Values.objectNames.secret }}
key: postgres-password
apiVersion: v1
kind: Service
metadata:
name: mywebsite-service
spec:
type: {{ .Values.app.service.type }}
selector:
app: mywebsite
ports:
- name: web
protocol: TCP
port: {{ .Values.app.service.port }}
targetPort: {{ .Values.app.service.targetPort }}
apiVersion: v1
kind: ConfigMap
metadata:
name: {{ .Values.objectNames.configMap }}
data:
POSTGRES_DB: {{ .Values.database.db | quote }}
POSTGRES_USER: {{ .Values.database.user | quote }}
apiVersion: v1
kind: ConfigMap
metadata:
name: postgres-init-script
data:
init.sql: |
CREATE TABLE IF NOT EXISTS visitors (
ip_address INET PRIMARY KEY,
first_visit_time TIMESTAMPTZ NOT NULL DEFAULT NOW(),
last_visit_time TIMESTAMPTZ NOT NULL DEFAULT NOW(),
user_agent TEXT
);
CREATE TABLE IF NOT EXISTS page_views (
view_id SERIAL PRIMARY KEY,
visitor_ip INET NOT NULL,
page_route TEXT NOT NULL,
view_timestamp TIMESTAMPTZ NOT NULL DEFAULT NOW(),
CONSTRAINT fk_visitor_ip
FOREIGN KEY(visitor_ip)
REFERENCES visitors(ip_address)
ON DELETE CASCADE
);apiVersion: apps/v1
kind: StatefulSet
metadata:
name: postgres-db
spec:
serviceName: {{ .Values.database.host }}
replicas: 1
selector:
matchLabels:
app: postgres-db
template:
metadata:
labels:
app: postgres-db
spec:
containers:
- name: postgres
image: "{{ .Values.database.image.repository }}:{{ .Values.database.image.tag }}"
ports:
- containerPort: 5432
name: postgres
envFrom:
- configMapRef:
name: {{ .Values.objectNames.configMap }}
env:
- name: POSTGRES_PASSWORD
valueFrom:
secretKeyRef:
name: {{ .Values.objectNames.secret }}
key: postgres-password
- name: PGDATA
value: /var/lib/postgresql/data/pgdata
volumeMounts:
- name: postgres-storage
mountPath: /var/lib/postgresql/data
- name: init-db-script
mountPath: /docker-entrypoint-initdb.d
volumes:
- name: init-db-script
configMap:
name: postgres-init-script
volumeClaimTemplates:
- metadata:
name: postgres-storage
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: {{ .Values.database.storage.storageClassName }}
resources:
requests:
storage: {{ .Values.database.storage.size }}
apiVersion: v1
kind: Service
metadata:
name: {{ .Values.database.host }}
spec:
type: ClusterIP
selector:
app: postgres-db
ports:
- name: postgres
protocol: TCP
port: 5432
targetPort: 5432
- name: metrics
protocol: TCP
port: 9187
targetPort: 9187
app:
replicaCount: 2
image:
repository: your-docker-id/mywebsite
tag: "v1.2.0"
pullPolicy: Always
containerPort: 5000
service:
type: ClusterIP
port: 80
targetPort: 5000
database:
image:
repository: postgres
tag: "15"
user: admin
db: mywebsite
host: postgres-db-service
storage:
storageClassName: gp3
size: 8Gi
objectNames:
configMap: postgres-config
secret: postgres-secret
Terraform (modules)
Terraform is my favorite tool for building, changing, and versioning infrastructure safely and efficiently.
I can write simple, human-readable code to define my (AWS) resources, and Terraform manages the entire lifecycle for me.
I am using 3 modules for terraform - vpc, eks and argocd.
This modular structure allows me to manage each on its own and makes it easier to manage, add and troubleshoot.
For a better view of the whole files and structure visit the following link: https://github.com/liormilliger/mywebsite-iac.git
AWS CLI Command
# List all S3 buckets in your account
aws s3 ls
# Create a new EC2 instance
aws ec2 run-instances \
--image-id ami-0c55b159cbfafe1f0 \
--count 1 \
--instance-type t2.micro \
--key-name MyKeyPairArtifactory - Sample Configurations
Artifactory is a powerful tool for artifact management, supporting numerous clients and integrating with external components like databases and storage providers. Below are two primary configuration file examples.
1. system.yaml - High Availability Configuration
This YAML file is used to configure core Artifactory settings. The following example enables High Availability by defining a node identity and connecting to an external PostgreSQL database, which is a requirement for an HA cluster.
# artifactory/var/etc/system.yaml
# Shared configuration block for both Artifactory and Access services
shared:
database:
type: postgresql
driver: org.postgresql.Driver
url: jdbc:postgresql://your-postgres-host:5432/artifactory
username: artifactory
password: password
# Artifactory-specific configuration
artifactory:
ha:
enabled: true
node:
id: "art-node-01" # Unique ID for this node
ip: "192.168.1.101" # Mock IP for this node
taskAffinity: "any" # Allows any node to run tasks
- Database Configuration: The
shared.databaseblock is critical for HA. All nodes in the cluster must point to the same external database to share state and metadata. - HA Enabled: The
ha.enabled: trueflag activates the high-availability mode for the node. - Node Identity: Each node in the cluster needs a unique
idand its ownipfor inter-node communication. - Task Affinity: The setting
taskAffinity: "any"is key for resilience. It allows background maintenance tasks to be executed by any available node in the cluster, ensuring that critical operations continue even if one node becomes unavailable.
2. binarystore.xml - S3 Sharded Filestore
This XML file configures a highly available and performant filestore by sharding binaries across multiple S3 backends. This method enhances I/O throughput and provides data redundancy.
<config version="2">
<chain> <!-- template="s3-sharding" -->
<provider id="cache-fs" type="cache-fs">
<provider type="sharding" id="sharding">
<sub-provider type="state-aware-s3" id="s3-shard1"/>
<sub-provider type="state-aware-s3" id="s3-shard2"/>
</provider>
</provider>
</chain>
<provider id="sharding" type="sharding">
<redundancy>2</redundancy>
</provider>
<provider id="s3-shard1" type="state-aware-s3">
<endpoint>http://s3.amazonaws.com</endpoint>
<bucketName>bucket1</bucketName>
<path>path1</path>
<region>us-east-1</region>
<provider.id>aws-s3</provider.id>
<identity>AK...-accessKeyId</identity>
<credential>ePE...-secretAccessKey</credential>
<enableSignedUrlRedirect>true</enableSignedUrlRedirect>
<signedUrlExpirySeconds>3600</signedUrlExpirySeconds>
</provider>
<provider id="s3-shard2" type="state-aware-s3">
<endpoint>http://s3.amazonaws.com</endpoint>
<bucketName>bucket2</bucketName>
<path>path2</path>
<region>us-east-1</region>
<provider.id>aws-s3</provider.id>
<identity>AK...-accessKeyId</identity>
<credential>ePE...-secretAccessKey</credential>
<enableSignedUrlRedirect>true</enableSignedUrlRedirect>
<signedUrlExpirySeconds>3600</signedUrlExpirySeconds>
</provider>
</config>
- Provider Chain: The configuration uses a
cache-fsprovider to serve frequently accessed artifacts from a local cache, which then delegates to theshardingprovider for persistent storage. - Sharding and Redundancy: The
shardingprovider manages two underlying S3 providers (s3-shard1ands3-shard2). The<redundancy>2</redundancy>tag is the key to this configuration: it instructs Artifactory to write every uploaded artifact to both shards. This provides a complete, real-time backup of the data across two different S3 buckets. - State-Aware S3 Provider: The
state-aware-s3type is a specific S3 provider that helps maintain consistency between Artifactory's database and the S3 object store. Each provider points to a unique S3 bucket (bucket1,bucket2). - Signed URL Redirect: Setting
<enableSignedUrlRedirect>true</enableSignedUrlRedirect>offloads traffic from Artifactory. When a user requests a download, Artifactory generates a temporary, secure link directly to the S3 object and redirects the client, allowing the client to download directly from AWS. This significantly improves performance and scalability.
JFrog Xray
JFrog Xray is a universal software composition analysis (SCA) solution that helps you secure your software supply chain. Below, you can explore a sample security policy and a representative vulnerability scan for a common Docker image.
Understanding a Security Policy
This snippet defines an automated security rule for JFrog Xray.
// This is the main policy object.
{
"name": "block-high-severity-vulns",
"description": "Block download of artifacts with vulnerabilities rated High or above.",
"type": "security",
"rules": [
{
"name": "high-severity-rule",
"criteria": {
"min_severity": "High"
},
"actions": {
"fail_build": true
}
}
]
}
- What it is: A security policy written in JSON that acts as an automated guard for your software components.
- What it does: It instructs Xray to automatically fail the build process if any component has a vulnerability rated "High" or worse.
- Why it matters: This enforces a "shift-left" security model by catching critical issues early in development, preventing vulnerable code from ever reaching production.
Image: python:3.9-slim
Summary: This section displays a sample vulnerability report for the `python:3.9-slim` Docker image.
Vulnerability Details
🔴 High Severity Vulnerabilities
| Package | Vulnerability ID | CVSS Score |
|---|---|---|
libssl1.1 |
CVE-2023-3817 | 7.4 |
libexpat1 |
CVE-2022-43680 | 8.8 |
🟠 Medium Severity Vulnerabilities
| Package | Vulnerability ID | CVSS Score |
|---|---|---|
ncurses-base |
CVE-2022-29458 | 6.8 |
apt |
CVE-2021-33624 | 5.9 |
- Key Takeaway: Most vulnerabilities discovered are not in the Python code itself, but in the underlying Debian operating system packages (like `libssl`) that the image is built upon.
- What it shows: The report highlights specific security issues (identified by their CVE numbers), categorizes them by severity, and provides a CVSS score to measure their potential impact.
My experience with AWS grows with time, and thanks to AWS giving credits for development, I can expand my knowledge and be an AWS agent.
AWS Services used for this website:
- VPC - Isolated cloud network for all resources.
- EC2 - Virtual servers (nodes) for the EKS cluster.
- EKS - Managed Kubernetes for hosting the application.
- IAM - Managed permissions using least-privileged policies.
- Security Groups - Instance-level firewall for minimal access.
- S3 - Storing the
terraform.tfstatefile securely. - Route 53 - DNS resolution and routing for the website.
Other services I am experienced with:
- Lambda - Serverless functions for backend automation.
- SQS - Message queue for decoupling services.
- SNS - Pub/sub messaging and notification service.
- DynamoDB - Managed NoSQL key-value database.
- RDS - Managed relational databases (e.g., PostgreSQL).
- Elastic Beanstalk - PaaS for quick deployment of web apps.
- CloudFormation - Infrastructure as Code for AWS-native stacks.
- CloudWatch - Monitoring, logging, and alerts for all services.
Prometheus
Prometheus is a very strong monitoring tool that uses a Service Monitor yaml file to scrape metrics from the cluster:
# servicemonitor.yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
name: mywebsite-servicemonitor
# Deploy this ServiceMonitor in the SAME namespace as your application
namespace: default
labels:
# IMPORTANT: This label tells the Prometheus instance from the stack to discover this ServiceMonitor.
# By default, it looks for 'release: prometheus'.
release: prometheus
spec:
# This section selects the Service(s) to monitor.
selector:
matchLabels:
# This MUST match the label on your application's Service.
app: mywebsite
# This tells the ServiceMonitor to look for the Service in the 'default' namespace.
namespaceSelector:
matchNames:
- default
# This section defines the endpoint to scrape on the selected Service.
endpoints:
- port: web # This must match the NAME of the port in your Service definition.
path: /metrics # The path where your app exposes Prometheus metrics.
interval: 15s # How frequently to scrape metrics.
We can expose the UI by port forwarding its service, and use the PromQL to get data such as CPU usage of pods per node:
And we can also get the list of all pods by namespace and node:
Grafana for Observability
I use Grafana as part of the Prometheus stack, as it provides visualization to the Prometheus Metrics (Observability). Grafana uses Dashboards and transfers the Prometheus scrapings and PromQL to present system metrics in a visualized manner, such as gauges, graphs and more, in real time.
Visualizations in Action
Metrics can be displayed in various formats for a quick, real-time status check. For example, gauges are great for showing current network bandwidth:
Time-series graphs are perfect for visualizing resource usage over time for different services in a Kubernetes cluster:
You can also get a detailed breakdown of resource consumption by each component (pod) directly from the dashboard:
Grafana & PromQL
Grafana is a visualization tool that builds upon data sources like Prometheus. Panels are built using queries written in PromQL (Prometheus Query Language). Here is a sample query to calculate and show CPU usage:
100 - (avg by (instance) (rate(node_cpu_seconds_total{mode="idle"}[5m])) * 100)The ELK Stack: Centralized Logging
The ELK Stack is a powerful combination of three open-source tools for centralized logging, log analysis, and visualization.
- Elasticsearch: A distributed search and analytics engine. It stores all the logs.
- Logstash: A server-side data processing pipeline that ingests data from multiple sources, transforms it, and sends it to a "stash" like Elasticsearch.
- Kibana: A data visualization dashboard that works on top of Elasticsearch, allowing you to create charts, graphs, and dashboards to view your log data.
Note on Log Shippers: In many of my projects, I use Filebeat instead of the full Logstash agent on the client-side. Filebeat is a lightweight, resource-friendly log shipper ("Beat") designed to send logs to either Logstash for further processing or directly to Elasticsearch. This is often more efficient for simple log forwarding from many servers.

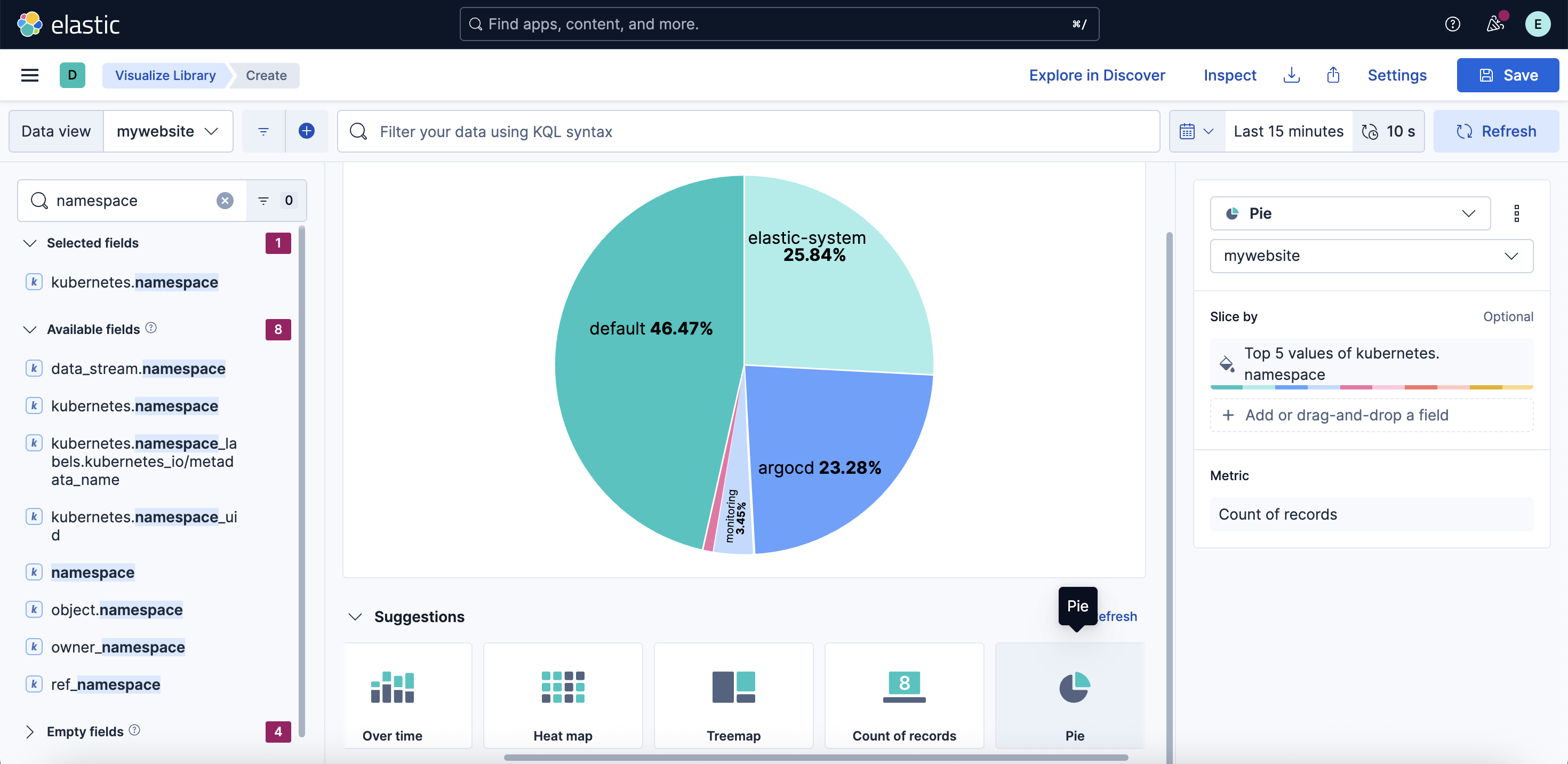

Below is an example of a Kibana dashboard, which is used to visualize the log data stored in Elasticsearch.
Python: From a Simple App to a Database-Driven Service
I started with a simple Flask application, `app.py`, designed to serve the pages of this website. As the project grew, I wanted to keep a record of visits, which led me to integrate a PostgreSQL database. This seemingly small addition had a significant impact on the architecture. It required separating the database logic into `db.py` and adjusting how the application was configured for different environments. This evolution turned a single-file app into a multi-service architecture, affecting local development, containerization with Docker, and deployment on Kubernetes, as each layer needed specific adjustments to handle the new database dependency.
Below you can see the full code I am using for this application, both in PROD and DEV environments.
from flask import Flask, render_template, send_from_directory, request
from prometheus_flask_exporter import PrometheusMetrics
import os
import logging
import time
from db import init_db_command, log_visitor, get_db
app = Flask(__name__)
# --- Database Setup ---
# Close the database connection after each request and add a CLI command.
app.teardown_appcontext(lambda e: get_db().close())
app.cli.add_command(init_db_command)
# --- Prometheus Metrics Configuration ---
metrics = PrometheusMetrics(app)
metrics.info('app_info', 'Application info', version='1.0.3')
# --- Logging Configuration ---
handler = logging.StreamHandler()
formatter = logging.Formatter(
'%(asctime)s UTC [%(levelname)s] - %(message)s'
)
formatter.converter = time.gmtime
handler.setFormatter(formatter)
app.logger.addHandler(handler)
app.logger.setLevel(logging.INFO)
# --- Middleware to Log Every Visit ---
@app.before_request
def log_request_info():
"""
This function runs before every request to log the visitor's information.
"""
# We don't want to log requests for static files (css, js, images)
if not request.path.startswith('/static'):
log_visitor()
# --- Application Routes ---
@app.route('/')
def home():
app.logger.info(f"[{request.path}] - Home page accessed.")
return render_template('index.html')
@app.route('/tech-stack')
def tech():
app.logger.info(f"[{request.path}] - Tech in Action page accessed.")
return render_template('tech.html')
# ... other routes ...
if __name__ == '__main__':
app.run(host='0.0.0.0', port=5000)
import os
import psycopg2
from flask import g, request, current_app
import click
def get_db():
"""
Opens a new database connection if there is none yet for the
current application context.
"""
if 'db' not in g:
try:
g.db = psycopg2.connect(
# Use environment variables for connection details
host=os.environ.get('POSTGRES_HOST', 'db'),
dbname=os.environ.get('POSTGRES_DB', 'website-db'),
user=os.environ.get('POSTGRES_USER', 'anyuser'),
password=os.environ.get('POSTGRES_PASSWORD', 'some-password'),
port=os.environ.get('POSTGRES_PORT', 5432)
)
current_app.logger.info("Database connection established.")
except psycopg2.OperationalError as e:
current_app.logger.error(f"Could not connect to database: {e}")
return None
return g.db
def log_visitor():
"""
Logs the current visitor's IP, user agent, and the page they visited.
"""
db = get_db()
if db is None:
current_app.logger.error("No database connection available, skipping visitor log.")
return
cursor = db.cursor()
visitor_ip = request.headers.get('X-Forwarded-For', request.remote_addr)
user_agent = request.headers.get('User-Agent')
page_route = request.path
try:
cursor.execute(
"""
INSERT INTO visitors (ip_address, user_agent) VALUES (%s, %s)
ON CONFLICT (ip_address) DO UPDATE
SET last_visit_time = NOW(), user_agent = EXCLUDED.user_agent;
""",
(visitor_ip, user_agent)
)
cursor.execute(
"""
INSERT INTO page_views (visitor_ip, page_route) VALUES (%s, %s);
""",
(visitor_ip, page_route)
)
db.commit()
except Exception as e:
db.rollback()
current_app.logger.error(f"Database error: {e}")
finally:
cursor.close()
@click.command('init-db')
def init_db_command():
"""Clear existing data and create new tables."""
db = get_db()
with current_app.open_resource('../init/init.sql') as f:
db.cursor().execute(f.read().decode('utf8'))
db.commit()
click.echo('Initialized the database.')
from flask import Flask, render_template, send_from_directory, request
from prometheus_flask_exporter import PrometheusMetrics
import os
import logging
import time
app = Flask(__name__)
# --- Prometheus Metrics and Logging are kept for consistency ---
metrics = PrometheusMetrics(app)
metrics.info('app_info', 'Application info', version='1.0.3')
handler = logging.StreamHandler()
formatter = logging.Formatter(
'%(asctime)s UTC [%(levelname)s] - %(message)s'
)
formatter.converter = time.gmtime
handler.setFormatter(formatter)
app.logger.addHandler(handler)
app.logger.setLevel(logging.INFO)
# --- Application Routes ---
# All database-related calls are removed from this version.
@app.route('/')
def home():
app.logger.info(f"[{request.path}] - Home page accessed.")
return render_template('index.html')
@app.route('/about-me')
def about():
app.logger.info(f"[{request.path}] - About Me page accessed.")
return render_template('about.html')
# ... other routes are identical to app.py ...
if __name__ == '__main__':
app.run(host='0.0.0.0', port=5000)
Bash: Automating SSL Certificates with Docker Compose and Certbot
This Bash script automates the entire process of obtaining and installing a free SSL/TLS certificate from Let's Encrypt for a web server running inside Docker. It is designed to work with a Docker Compose setup that includes an Nginx web server and a Certbot container.
- Automation: The script handles everything from creating temporary certificates to allow Nginx to start, to requesting the real certificate from Let's Encrypt, and finally reloading Nginx to apply it.
- Docker Integration: It seamlessly manages the Docker containers, starting, stopping, and executing commands within them as needed for the certification process.
- Best Practices: The script downloads recommended TLS security parameters and automates the certificate renewal process setup, ensuring a secure and up-to-date configuration.
init-letsencrypt.sh
#!/bin/bash
# Make sure to replace these with your domain and email
domains=(your-domain.com)
email="your-email@example.com" # Add a valid email address
data_path="./data/certbot"
rsa_key_size=4096
staging=0 # Set to 1 for testing with staging servers
if [ -d "$data_path" ]; then
read -p "Existing data found for $domains. Continue and replace existing certificate? (y/N) " decision
if [ "$decision" != "Y" ] && [ "$decision" != "y" ]; then
exit
fi
fi
if [ ! -e "$data_path/conf/options-ssl-nginx.conf" ] || [ ! -e "$data_path/conf/ssl-dhparams.pem" ]; then
echo "### Downloading recommended TLS parameters ..."
mkdir -p "$data_path/conf"
curl -s https://raw.githubusercontent.com/certbot/certbot/master/certbot-nginx/certbot_nginx/_internal/tls_configs/options-ssl-nginx.conf > "$data_path/conf/options-ssl-nginx.conf"
curl -s https://raw.githubusercontent.com/certbot/certbot/master/certbot/certbot/ssl-dhparams.pem > "$data_path/conf/ssl-dhparams.pem"
echo
fi
echo "### Creating dummy certificate for $domains ..."
path="/etc/letsencrypt/live/$domains"
mkdir -p "$data_path/conf/live/$domains"
docker-compose run --rm --entrypoint "\
openssl req -x509 -nodes -newkey rsa:$rsa_key_size -days 1\
-keyout '$path/privkey.pem' \
-out '$path/fullchain.pem' \
-subj '/CN=localhost'" certbot
echo
echo "### Starting nginx ..."
docker-compose up --force-recreate -d nginx
echo
echo "### Deleting dummy certificate for $domains ..."
docker-compose run --rm --entrypoint "\
rm -Rf /etc/letsencrypt/live/$domains && \
rm -Rf /etc/letsencrypt/archive/$domains && \
rm -Rf /etc/letsencrypt/renewal/$domains.conf" certbot
echo
echo "### Requesting Let's Encrypt certificate for $domains ..."
domain_args=""
for domain in "${domains[@]}"; do
domain_args="$domain_args -d $domain"
done
email_arg="--email $email"
case "$email" in
"") email_arg="--register-unsafely-without-email" ;;
esac
if [ $staging != "0" ]; then staging_arg="--staging"; fi
docker-compose run --rm --entrypoint "\
certbot certonly --webroot -w /var/www/certbot \
$staging_arg \
$email_arg \
$domain_args \
--rsa-key-size $rsa_key_size \
--agree-tos \
--force-renewal" certbot
echo
echo "### Reloading nginx ..."
docker-compose exec nginx nginx -s reload
echo "### Your site is now running with HTTPS! ###"
Script Breakdown
This script is executed in several distinct stages to ensure a smooth and automated setup:
- Configuration: At the top, you define the domain(s) you want to secure and a contact email address. This makes the script easy to adapt for different projects.
- Download TLS Parameters: The script checks if secure TLS parameters from Certbot's official repository exist. If not, it downloads them. These files provide strong, up-to-date SSL/TLS settings for Nginx.
- Create a Dummy Certificate: Nginx won't start if it's configured for HTTPS but can't find an SSL certificate. To solve this chicken-and-egg problem, the script generates a temporary, self-signed "dummy" certificate.
- Start Nginx: With the dummy certificate in place, the script starts the Nginx container. Nginx can now run and is ready to serve the validation files that Let's Encrypt needs to see.
- Request the Real Certificate: The script then deletes the dummy certificate and runs the Certbot container. Certbot communicates with Let's Encrypt's servers, which perform an HTTP-01 challenge to verify that you control the domain. Once verified, Let's Encrypt issues a real certificate.
- Reload Nginx: Finally, the script sends a reload command to the running Nginx container. This causes Nginx to gracefully pick up the new, official Let's Encrypt certificate without any downtime, completing the switch to HTTPS.
Automation Scripts
Automation is at the core of how I work — from deploying Docker services, scanning AWS accounts, or cleaning up unused volumes, these scripts make repetitive tasks simple and reliable. Below are a few of my most-used Bash scripts, formatted for easy reading.
#!/bin/bash
# Stops, pulls, rebuilds, and restarts a Docker Compose service
set -e
SERVICE_NAME="app"
CONTAINER_NAME="mywebsite-app"
echo "Stopping and removing existing container..."
docker-compose stop $SERVICE_NAME || true
docker-compose rm -f $SERVICE_NAME || true
echo "Pulling new code..."
git pull
echo "Building new image for service '$SERVICE_NAME'..."
docker-compose build --no-cache $SERVICE_NAME
echo "Starting new container with latest image..."
docker-compose up -d --no-deps $SERVICE_NAME
echo "Pruning unused images..."
docker image prune -f
echo "✅ Update complete for '$CONTAINER_NAME'."
#!/bin/bash
# Delete all AWS EBS volumes not in use
# Requires: AWS CLI configured with appropriate permissions
set -e
echo "🔍 Fetching EBS volumes not in 'in-use' state..."
VOLUMES=$(aws ec2 describe-volumes \
--query "Volumes[?State!='in-use'].VolumeId" \
--output text)
if [ -z "$VOLUMES" ]; then
echo "✅ No unused volumes found."
exit 0
fi
echo "⚠️ The following volumes are NOT in use:"
echo "$VOLUMES" | tr '\t' '\n'
echo
read -p "Delete ALL these volumes? (yes/no): " CONFIRM
if [[ "$CONFIRM" != "yes" ]]; then
echo "❌ Aborted. No volumes deleted."
exit 0
fi
for VOL in $VOLUMES; do
echo "Deleting $VOL..."
aws ec2 delete-volume --volume-id "$VOL"
done
echo "✅ Cleanup complete."
#!/bin/bash
# Scans all AWS regions for EC2, EBS, EKS, and S3 resources
set -euo pipefail
ACCOUNT_ID=$(aws sts get-caller-identity --query "Account" --output text)
echo "AWS Account: $ACCOUNT_ID"
echo
REGIONS=$(aws ec2 describe-regions --query "Regions[].RegionName" --output text)
for region in $REGIONS; do
echo "🔍 Scanning region: $region ..."
ec2_found=false
volume_found=false
eks_found=false
s3_found=false
EC2S=$(aws ec2 describe-instances --region "$region" \
--query "Reservations[].Instances[?State.Name=='running'].{ID:InstanceId, Name:Tags[?Key=='Name']|[0].Value, Creator:Tags[?Key=='CreatedBy']|[0].Value}" \
--output text 2>/dev/null || true)
if [[ -n "$EC2S" ]]; then
ec2_found=true
echo "⚙️ EC2 INSTANCES:"
echo "$EC2S" | while read -r ID NAME CREATOR; do
[[ -z "$NAME" ]] && NAME="(no name)"
[[ -z "$CREATOR" || "$CREATOR" == "None" ]] && CREATOR="(unknown creator)"
echo " • Name: $NAME | ID: $ID | Creator: $CREATOR"
done
fi
VOLUMES=$(aws ec2 describe-volumes --region "$region" \
--query "Volumes[].{ID:VolumeId, Attachments:Attachments}" --output json 2>/dev/null || true)
ATTACHED=$(echo "$VOLUMES" | jq -r '.[] | select(.Attachments | length > 0) | " • Volume: \(.ID) attached to \(.Attachments[0].InstanceId)"')
UNATTACHED=$(echo "$VOLUMES" | jq -r '.[] | select(.Attachments | length == 0) | " • Unattached volume: \(.ID)"')
if [[ -n "$ATTACHED" || -n "$UNATTACHED" ]]; then
volume_found=true
echo "💾 ATTACHED VOLUMES:"
[[ -n "$ATTACHED" ]] && echo "$ATTACHED"
echo "💤 UNATTACHED VOLUMES:"
[[ -n "$UNATTACHED" ]] && echo "$UNATTACHED"
fi
CLUSTERS=$(aws eks list-clusters --region "$region" --output text 2>/dev/null || true)
if [[ -n "$CLUSTERS" ]]; then
eks_found=true
echo "☸️ EKS CLUSTERS:"
for cluster in $CLUSTERS; do
CREATOR=$(aws eks describe-cluster --name "$cluster" --region "$region" \
--query "cluster.tags.CreatedBy" --output text 2>/dev/null || echo "(unknown)")
[[ -z "$CREATOR" || "$CREATOR" == "None" ]] && CREATOR="(unknown)"
echo " • Cluster: $cluster | Creator: $CREATOR"
done
fi
if ! $ec2_found && ! $volume_found && ! $eks_found && ! $s3_found; then
echo " → No findings in $region"
fi
echo
done
echo "✅ Scan complete."
#!/bin/bash
# Installs Docker automatically on an EC2 Ubuntu instance
apt-get update
apt-get install -y vim tree net-tools
sudo apt-get update
sudo apt-get install -y ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc
echo \
"deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu \
$(. /etc/os-release && echo "${UBUNTU_CODENAME:-$VERSION_CODENAME}") stable" | \
sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt-get update
sudo apt-get install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin docker-compose
My experience with databases is being showcased here with PostgreSQL, as this is my favorite Relational DB. I decided to enhance my portfolio application by creating a logic that writes all visitor traffic to a database to track their navigation. I created 2 tables for that and the results were surprising!
This required changes to the app logic and the creation of a db.py file—both of which are presented in the Python and Bash Scripting snippets on this page.
Database Initialization
The database itself needs an initialization script to create the necessary schema, user, password, and tables before the application can interact with it.
-- init.sql
-- This script creates a schema to log website traffic, tracking unique
-- visitors and the specific pages they view over time.
-- Table to store unique visitor information.
-- The IP address is the primary key here, as it uniquely identifies a visitor.
CREATE TABLE IF NOT EXISTS visitors (
ip_address INET PRIMARY KEY,
first_visit_time TIMESTAMPTZ NOT NULL DEFAULT NOW(),
last_visit_time TIMESTAMPTZ NOT NULL DEFAULT NOW(),
user_agent TEXT -- Optional: store browser/device info
);
-- Table to log each individual page view.
-- This table has its own primary key (view_id) because a visitor can have many page views.
-- It uses a foreign key to link back to the visitors table.
CREATE TABLE IF NOT EXISTS page_views (
view_id SERIAL PRIMARY KEY,
visitor_ip INET NOT NULL,
page_route TEXT NOT NULL, -- e.g., '/', '/about-me', '/tech-stack'
view_timestamp TIMESTAMPTZ NOT NULL DEFAULT NOW(),
CONSTRAINT fk_visitor_ip
FOREIGN KEY(visitor_ip)
REFERENCES visitors(ip_address)
ON DELETE CASCADE -- If a visitor is deleted, their page views are also deleted.
);
This SQL script sets up two core tables:
visitors: This table stores a unique record for each visitor based on their IP address. It tracks their first and most recent visit times.page_views: This table logs every single page a visitor accesses. Each entry is linked back to the visitor's IP in thevisitorstable, creating a complete history of user navigation.
Real-World Results
When launching my app with the database using a dedicated docker-compose file on an EC2 instance and opening the HTTP port to all traffic, I asked some friends to try it out. Afterward, I queried the database to see the records.
I was stunned to see the following traffic, which includes all 148 requests from the attacking IP address:
view_id | visitor_ip | page_route | view_timestamp
---------+-----------------+---------------------------------------------------+-------------------------------
...
23 | 40.113.19.56 | /wp-content/plugins/hellopress/wp_filemanager.php | 2025-10-03 15:08:44.890954+00
24 | 40.113.19.56 | /bp.php | 2025-10-03 15:08:44.981685+00
25 | 40.113.19.56 | /file2.php | 2025-10-03 15:08:45.069474+00
26 | 40.113.19.56 | /class.1.php | 2025-10-03 15:08:45.155711+00
27 | 40.113.19.56 | /manager.php | 2025-10-03 15:08:45.241398+00
28 | 40.113.19.56 | /file21.php | 2025-10-03 15:08:45.326693+00
29 | 40.113.19.56 | /file6.php | 2025-10-03 15:08:45.413621+00
30 | 40.113.19.56 | /file.php | 2025-10-03 15:08:45.500576+00
31 | 40.113.19.56 | /lock360.php | 2025-10-03 15:08:45.586863+00
32 | 40.113.19.56 | /default.php | 2025-10-03 15:08:45.679053+00
33 | 40.113.19.56 | /file5.php | 2025-10-03 15:08:45.794394+00
34 | 40.113.19.56 | /333.php | 2025-10-03 15:08:45.881608+00
35 | 40.113.19.56 | /file15.php | 2025-10-03 15:08:45.966794+00
36 | 40.113.19.56 | /atomlib.php | 2025-10-03 15:08:46.052841+00
37 | 40.113.19.56 | /aa2.php | 2025-10-03 15:08:46.138764+00
38 | 40.113.19.56 | /gfile.php | 2025-10-03 15:08:46.224591+00
39 | 40.113.19.56 | /nfile.php | 2025-10-03 15:08:46.311504+00
40 | 40.113.19.56 | /cabs.php | 2025-10-03 15:08:46.396944+00
41 | 40.113.19.56 | /usep.php | 2025-10-03 15:08:46.483186+00
42 | 40.113.19.56 | /abcd.php | 2025-10-03 15:08:46.570358+00
43 | 40.113.19.56 | /ilex.php | 2025-10-03 15:08:46.658465+00
44 | 40.113.19.56 | /hk.php | 2025-10-03 15:08:46.746744+00
45 | 40.113.19.56 | /file1.php | 2025-10-03 15:08:46.834331+00
46 | 40.113.19.56 | /rrr.php | 2025-10-03 15:08:46.92382+00
47 | 40.113.19.56 | /vee.php | 2025-10-03 15:08:47.00991+00
48 | 40.113.19.56 | /222.php | 2025-10-03 15:08:47.095895+00
49 | 40.113.19.56 | /fffff.php | 2025-10-03 15:08:47.185577+00
50 | 40.113.19.56 | /cool.php | 2025-10-03 15:08:47.289561+00
51 | 40.113.19.56 | /cfile.php | 2025-10-03 15:08:47.375429+00
52 | 40.113.19.56 | /new4.php | 2025-10-03 15:08:47.462155+00
53 | 40.113.19.56 | /031.php | 2025-10-03 15:08:47.54776+00
54 | 40.113.19.56 | /goat.php | 2025-10-03 15:08:47.636889+00
55 | 40.113.19.56 | /we.php | 2025-10-03 15:08:47.724788+00
56 | 40.113.19.56 | /aa.php | 2025-10-03 15:08:47.80998+00
57 | 40.113.19.56 | /gmo.php | 2025-10-03 15:08:47.895707+00
58 | 40.113.19.56 | /gm.php | 2025-10-03 15:08:47.982633+00
59 | 40.113.19.56 | /eauu.php | 2025-10-03 15:08:48.069536+00
60 | 40.113.19.56 | /2.php | 2025-10-03 15:08:48.155682+00
61 | 40.113.19.56 | /CLA.php | 2025-10-03 15:08:48.242789+00
62 | 40.113.19.56 | /wpc.php | 2025-10-03 15:08:48.336367+00
63 | 40.113.19.56 | /lala.php | 2025-10-03 15:08:48.423806+00
64 | 40.113.19.56 | /dfre.php | 2025-10-03 15:08:48.512749+00
65 | 40.113.19.56 | /file3.php | 2025-10-03 15:08:48.598727+00
66 | 40.113.19.56 | /as.php | 2025-10-03 15:08:48.684506+00
67 | 40.113.19.56 | /444.php | 2025-10-03 15:08:48.769966+00
68 | 40.113.19.56 | /file9.php | 2025-10-03 15:08:48.856609+00
69 | 40.113.19.56 | /yanz.php | 2025-10-03 15:08:48.944013+00
70 | 40.113.19.56 | /system_log.php | 2025-10-03 15:08:49.030504+00
71 | 40.113.19.56 | /admin/upload/css.php | 2025-10-03 15:08:49.116629+00
72 | 40.113.19.56 | /wp.php | 2025-10-03 15:08:49.202528+00
73 | 40.113.19.56 | /admin.php | 2025-10-03 15:08:49.289782+00
74 | 40.113.19.56 | /f35.php | 2025-10-03 15:08:49.376755+00
75 | 40.113.19.56 | /info.php | 2025-10-03 15:08:49.462196+00
76 | 40.113.19.56 | /css.php | 2025-10-03 15:08:49.547774+00
77 | 40.113.19.56 | /radio.php | 2025-10-03 15:08:49.633898+00
78 | 40.113.19.56 | /wp-admin/user/about.php | 2025-10-03 15:08:49.718909+00
79 | 40.113.19.56 | /index/function.php | 2025-10-03 15:08:49.806662+00
80 | 40.113.19.56 | /simple.php | 2025-10-03 15:08:49.893433+00
81 | 40.113.19.56 | /v.php | 2025-10-03 15:08:49.982912+00
82 | 40.113.19.56 | /fe5.php | 2025-10-03 15:08:50.06874+00
83 | 40.113.19.56 | /ee.php | 2025-10-03 15:08:50.154924+00
84 | 40.113.19.56 | /get.php | 2025-10-03 15:08:50.241466+00
85 | 40.113.19.56 | /file18.php | 2025-10-03 15:08:50.328438+00
86 | 40.113.19.56 | /c.php | 2025-10-03 15:08:50.415157+00
87 | 40.113.19.56 | /about.php | 2025-10-03 15:08:50.50094+00
88 | 40.113.19.56 | /file17.php | 2025-10-03 15:08:50.585732+00
89 | 40.113.19.56 | /wp-includes/IXR/admin.php | 2025-10-03 15:08:50.67756+00
90 | 40.113.19.56 | /efile.php | 2025-10-03 15:08:50.763741+00
91 | 40.113.19.56 | /r.php | 2025-10-03 15:08:50.851319+00
92 | 40.113.19.56 | /t.php | 2025-10-03 15:08:50.952744+00
93 | 40.113.19.56 | /file88.php | 2025-10-03 15:08:51.037884+00
94 | 40.113.19.56 | /NewFile.php | 2025-10-03 15:08:51.124456+00
95 | 40.113.19.56 | /makeasmtp.php | 2025-10-03 15:08:51.22758+00
96 | 40.113.19.56 | /tiny.php | 2025-10-03 15:08:51.314992+00
97 | 40.113.19.56 | /marijuana.php | 2025-10-03 15:08:51.401166+00
98 | 40.113.19.56 | /config.php | 2025-10-03 15:08:51.489659+00
99 | 40.113.19.56 | /wp-2019.php | 2025-10-03 15:08:51.577475+00
100 | 40.113.19.56 | /1.php | 2025-10-03 15:08:51.662816+00
...
(183 rows)
Alongside the traffic from my friends, the logs were flooded with hundreds of rapid requests from a single IP address (40.113.19.56) trying to access common vulnerability endpoints and non-existent PHP files. This is a classic example of a vulnerability scan, often preceding or forming part of a DDoS attack. This demonstrates how quickly a publicly accessible server can become a target. 🎯
For MySQL, I've replicated the same visitor-tracking logic that I implemented with PostgreSQL. This demonstrates how a similar goal can be achieved in a different database system by adapting the SQL schema to its specific syntax and data types.
The application logic in the db.py file would also need to be adjusted to use a MySQL connector library (like mysql-connector-python) instead of psycopg2.
Database Initialization (MySQL)
This initialization script creates the necessary tables in a MySQL database to log website visitors and their page views.
-- init-mysql.sql
-- This script creates a schema to log website traffic for a MySQL database.
-- Table to store unique visitor information.
CREATE TABLE IF NOT EXISTS `visitors` (
`ip_address` VARCHAR(45) PRIMARY KEY,
`first_visit_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
`last_visit_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
`user_agent` TEXT
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
-- Table to log each individual page view.
CREATE TABLE IF NOT EXISTS `page_views` (
`view_id` INT AUTO_INCREMENT PRIMARY KEY,
`visitor_ip` VARCHAR(45) NOT NULL,
`page_route` TEXT NOT NULL,
`view_timestamp` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
CONSTRAINT `fk_visitor_ip`
FOREIGN KEY(`visitor_ip`)
REFERENCES `visitors`(`ip_address`)
ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
This SQL script sets up the same two core tables as the PostgreSQL version, but adapted for MySQL:
visitors: Stores unique visitors, usingVARCHAR(45)for the IP address.page_views: Logs each page view, usingINT AUTO_INCREMENTfor the primary key.
Nginx - Reverse Proxy & SSL Configuration
This Nginx configuration is set up to serve a web application securely.
It redirects all HTTP traffic to HTTPS, handles SSL termination using Let's Encrypt certificates,
and reverse proxies requests to a backend application container named 'app' running on port 5000.
server {
listen 80;
server_name liormilliger.com;
location /.well-known/acme-challenge/ {
root /var/www/certbot;
}
location / {
return 301 https://$host$request_uri;
}
}
server {
listen 443 ssl;
server_name liormilliger.com;
ssl_certificate /etc/letsencrypt/live/liormilliger.com/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/liormilliger.com/privkey.pem;
include /etc/letsencrypt/options-ssl-nginx.conf;
ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem;
location / {
proxy_pass http://app:5000;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
}
}
Apache - Reverse Proxy Configuration
An Artifactory-style generated configuration for Apache. It redirects HTTP (80) traffic to HTTPS (443), handles SSL termination, and proxies requests to the upstream server.
<VirtualHost *:80>
ServerName liormilliger.com
ServerAlias *.liormilliger.com
# Redirect HTTP to HTTPS
RewriteEngine on
RewriteCond %{HTTPS} off
RewriteRule (.*) https://%{HTTP_HOST}%{REQUEST_URI} [L,R=301]
</VirtualHost>
<VirtualHost *:443>
ServerName liormilliger.com
## SSL Configuration
SSLEngine on
SSLCertificateFile "/etc/httpd/ssl/liormilliger.com.crt"
SSLCertificateKeyFile "/etc/httpd/ssl/liormilliger.com.key"
## Proxy Configuration
ProxyPreserveHost On
ProxyRequests Off
# Add X-Forwarded-Proto header
RequestHeader set X-Forwarded-Proto "https"
# Proxy requests to the upstream server
ProxyPass / http://liormilliger.com/
ProxyPassReverse / http://liormilliger.com/
</VirtualHost>
